Serrated Lock Washers

A serrated washer, also known as a serrated lock washer or serrated tooth washer, is a type of washer designed to provide resistance to loosening of fasteners by creating friction and locking the fastener in place. The washer has a series of serrated (notched or ridged) edges that dig into the material it contacts when the fastener is tightened. This prevents the fastener from loosening due to vibrations or rotational forces.

Key Features of Serrated Washers:

1.


   Serrated Teeth: The main feature of a serrated washer is the series of sharp, angled teeth around the washer's circumference. These teeth are designed to grip into the material of the fastener (e.g., the nut, bolt, or screw) and the surface it's tightened against.





2.


   Locking Mechanism: When the fastener is tightened, the serrated edges bite into the materials, increasing friction and reducing the chances of the fastener loosening due to vibrations or movement.





3.


   Material: Serrated washers are typically made from metal, such as steel or stainless steel, but can also be found in other materials depending on the application (e.g., non-corrosive materials for specific environments).





4.


   Shape: Serrated washers are usually round, with multiple ridged teeth around the edge. The teeth can be oriented in different directions (either outward or inward, depending on the specific design of the washer).




Applications:

•


  Vibration Resistance: Serrated washers are commonly used in applications where vibration could cause fasteners to loosen, such as in automotive, machinery, or industrial equipment.





•


  Mechanical and Structural Assemblies: They are often used in machinery or structural assemblies to maintain tight fastener connections.





•


  Electronics and Electrical Systems: Sometimes used in electrical connections where maintaining a secure connection is critical.





•


  Heavy-Duty and Outdoor Equipment: Used in heavy-duty equipment or outdoor environments, such as construction machinery or vehicles, to prevent loosening under high stress.




Types of Serrated Washers:

1.

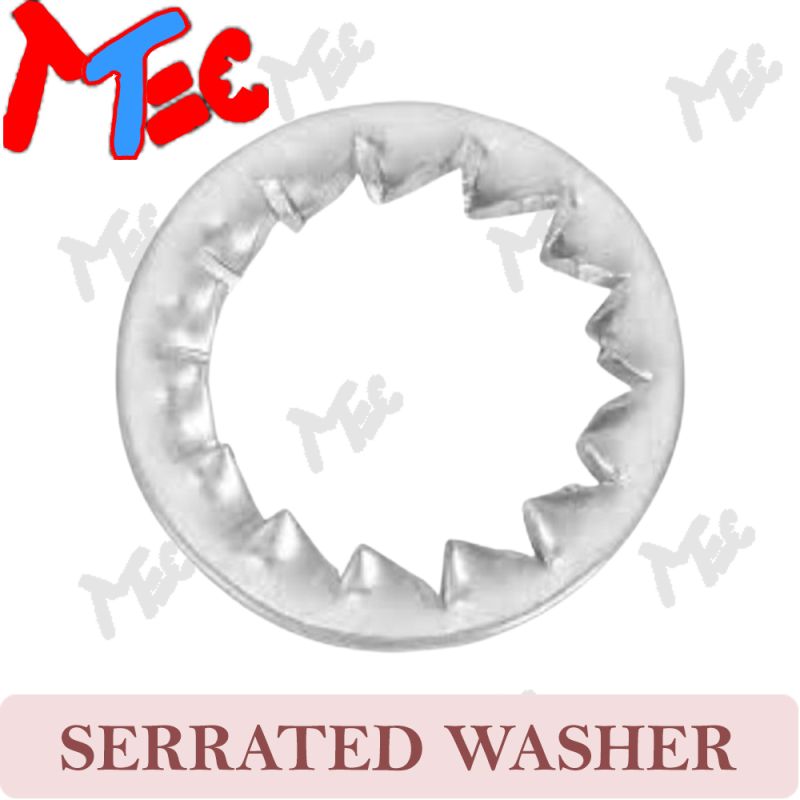

   External Serrated Washers: The serrations are on the outside edge of the washer, designed to grip the surface around the fastener.





2.


   Internal Serrated Washers: The serrations are on the inside edge of the washer, designed to grip the fastener itself (nut, bolt, etc.) to prevent it from loosening.





3.


   Single Serrated Washers: These washers have a single set of serrations around the edge.





4.


   Double Serrated Washers: These washers have serrations both on the outside and the inside edges, providing a more secure grip.




Advantages:

•


  Effective Locking Mechanism: The serrated teeth create a strong frictional connection that holds the fastener in place, even under vibration.





•


  Prevention of Loosening: Excellent at preventing fasteners from loosening due to repeated movement, vibration, or torque.





•


  Compact: Serrated washers are generally compact and can fit into tight spaces while still providing effective locking.




Differences from Other Lock Washers:

•


  Serrated Washers vs. Star Washers: Serrated washers have a series of sharp, angled teeth, while star washers often have multiple prongs arranged in a star pattern. Both serve to prevent loosening, but serrated washers provide a more uniform, continuous grip around the fastener.





•


  Serrated Washers vs. External/Internal Tooth Lock Washers: External and internal tooth washers have teeth that bite into the material or fastener. Serrated washers, however, typically provide a finer grip and are used specifically to prevent loosening due to vibration.




Common Applications:



•


  Automotive: Used in car assemblies where vibrations could cause bolts to loosen.





•


  Machinery: Prevents bolts or screws from loosening in high-stress machines.





•


  Electrical Equipment: Ensures a secure connection in electrical systems, such as electrical panels or devices.





•


  Construction: Used in construction machinery to secure nuts and bolts under vibration-prone conditions.
