Spring Washers

A Belleville washer (also known as a conical washer) is a type of disc spring that is conical in shape, meaning it has a slight dish or cone-like structure. This washer is designed to provide axial load resistance and to act as a spring, allowing it to absorb shocks, provide tension, and maintain a compressive force.

Key Features of Belleville Washers:

1.


   Conical Shape: The Belleville washer has a cone-shaped profile, which gives it the ability to deflect (flatten) under load and return to its original shape, offering spring-like properties.





2.


   Material: These washers are typically made from spring steel, stainless steel, or other high-strength materials to withstand heavy loads and provide long-term durability.





3.


   Load-Bearing Capacity: Belleville washers are designed to handle high axial loads and can be stacked in series or parallel to provide higher spring forces depending on the application.




Main Benefits of Belleville Washers:

1.


   High Load Resistance: Due to their conical shape, Belleville washers can handle large axial loads and are often used in heavy-duty applications.





2.


   Shock Absorption: These washers can absorb shock and vibration, helping to maintain a tight connection in mechanical systems.





3.


   Space-Efficient Spring Action: Belleville washers are compact but provide effective spring action, making them ideal for situations where space is limited.





4.


   Adjustable Preload: By stacking Belleville washers (either in series or parallel), you can achieve the desired preload or spring force for specific applications.





5.


   Long Lifespan: These washers have excellent fatigue resistance and can maintain their spring action over many cycles.




Applications of Belleville Washers:

•


  Automotive: In automotive suspensions, exhaust systems, and engine components where high axial loads or shock absorption is needed.





•


  Industrial Machinery: For machines that experience high loads and require tight connections without loosening due to vibration.





•


  Aerospace: In the aviation industry, where weight is a concern, Belleville washers help secure components while minimizing space usage.





•


  Fastening: Used in bolted joints to maintain consistent tension and prevent loosening in critical systems.




Types of Belleville Washers:



1.


   Standard Belleville Washer: The basic conical washer, used to provide spring force and load resistance.





2.


   Stacked Belleville Washers: When multiple Belleville washers are stacked either in series (for more deflection) or parallel (for more load capacity), they can offer adjustable spring forces and preload values.





3.


   Wave Belleville Washer: A variation with a slight wave shape to provide specific performance characteristics in certain applications




A disc washer (also known as a flat washer) is a type of washer that has a flat, circular shape with a hole in the center, designed to distribute the load of a fastener, such as a bolt, screw, or nut, over a larger surface area. This helps prevent damage to the material being fastened and reduces the chances of loosening due to vibration. Key Features of Disc Washers: Shape: A disc washer is typically round with a central hole. It has a uniform thickness and is flat, providing a large surface area for load distribution. Material: Disc washers are made from a variety of materials depending on the application. Common materials include: Steel (plain or galvanized for corrosion resistance) Stainless Steel (for corrosion-resistant applications) Brass (for electrical connections and non-corrosive environments) Plastic (for lightweight and non-metallic applications) Copper (for electrical or heat-dissipation needs) Load Distribution: The primary function of a disc washer is to distribute the load of a fastener (such as a bolt or screw) over a larger area to prevent damage to softer materials or surfaces, which could otherwise be deformed by the fastener. Size and Thickness: Disc washers come in various sizes, with diameters ranging from a few millimeters to several inches. The thickness of the washer typically depends on the load-bearing requirements, with thicker washers providing more strength and larger surface area. Central Hole: The hole in the center of the disc washer is typically designed to match the diameter of the bolt or screw used in the application. It provides a perfect fit for the fastener to pass through. Applications of Disc Washers: Mechanical and Industrial Applications: Disc washers are commonly used in machinery, vehicles, and industrial equipment to distribute pressure from bolts, nuts, and screws, especially when fastening to softer or delicate materials. Automotive Industry: Used to prevent damage to automotive components and provide a secure fastening in areas where vibrations or movement may loosen fasteners. Construction: In construction, disc washers are used for securing parts together, such as in structural steel connections, wooden assemblies, and securing bolts for various fixtures and fittings. Electronics and Electrical: In electronic and electrical applications, non-metallic disc washers (like plastic or rubber) can be used for insulation and preventing short circuits between conductive parts. Furniture and Woodworking: In woodworking, they prevent wood from being damaged by bolts and screws and are often used in furniture construction. Plumbing: Used in plumbing applications to seal joints or connections where bolts or nuts are used to fasten pipes and fixtures together. Advantages of Disc Washers: Load Distribution: The primary advantage of a disc washer is its ability to distribute the pressure of the fastener, preventing the material from being deformed or damaged under stress. Prevents Loosening: By providing a firm surface, disc washers help reduce the chances of fasteners loosening due to vibrations, especially in applications like automotive or machinery. Protection of Soft Materials: In applications involving softer materials (like wood, plastic, or aluminum), disc washers prevent the material from being crushed or marked by the fastener. Corrosion Resistance: Materials like stainless steel or galvanized steel help prevent rust and corrosion, extending the life of the fasteners and the materials they hold together. Versatile: Disc washers can be used in a wide range of applications, from light-duty jobs to heavy industrial uses, depending on the material and size chosen. Common Sizes and Types: Disc washers come in a range of sizes, typically matched to the fastener size being used. Some standard sizes include: Small Washers: Common for smaller fasteners, with diameters from 6mm to 20mm. Med

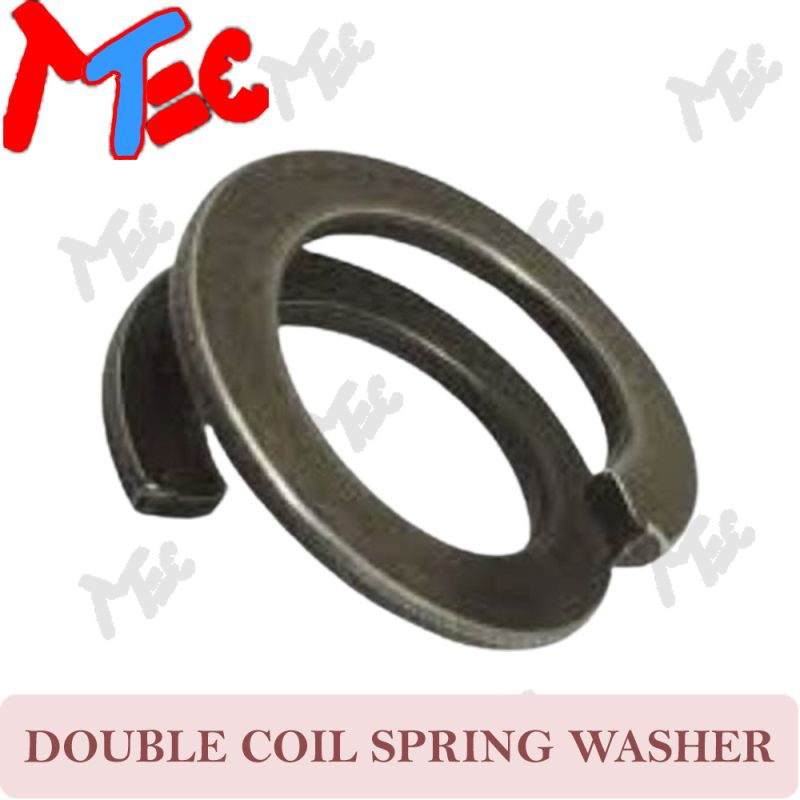

A double coil spring washer is a type of washer designed with two coils or helical springs, which provide enhanced spring action compared to single coil washers. These washers are typically used in applications where increased load-bearing capacity, resilience, or resistance to loosening is required. The double coil design offers more flexibility and compressive strength, making them ideal for heavy-duty or high-stress environments.

Key Features of a Double Coil Spring Washer:

1. Double Helical Coils: Unlike single coil washers, double coil washers feature two coils that are wound together, providing greater elasticity and a higher spring force.

2. Material: They are typically made from spring steel, stainless steel, or other materials that provide strength and flexibility to withstand the compressive forces and vibrations they are exposed to.

3. Function: When a fastener is tightened, the double coil washer compresses and exerts a spring-like force that resists loosening due to vibrations or external forces. The dual coils offer a more stable and consistent force compared to single coil washers.

Benefits of Double Coil Spring Washers:

• Increased Load Resistance: The dual coils can handle larger loads and higher compression, making them suitable for more demanding applications.

• Vibration Resistance: Like other spring washers, they resist loosening due to vibration or movement, but the double coil design offers superior performance in applications with frequent or high-intensity vibrations.

• Compact Yet Effective: Double coil washers often take up less space than other types of locking mechanisms (like lock nuts or split washers) while offering comparable or superior performance.

• Durability: These washers can last longer under heavy stress, providing a more reliable long-term solution.

Applications of Double Coil Spring Washers:



• Automotive: In car engines or other automotive components where high vibration is common, double coil washers help keep fasteners tight.

• Industrial Machinery: In machines or equipment that undergo frequent movement, these washers help maintain secure assemblies by absorbing shock and preventing fastener loosening.

• Construction Equipment: Heavy-duty machinery and equipment often use double coil washers to ensure tight connections under harsh conditions.

•

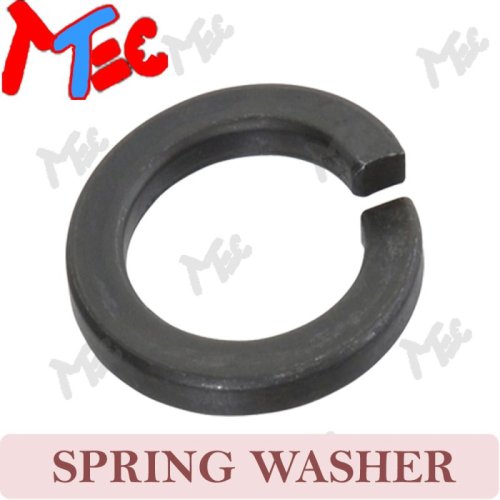

A spring washer (also known as a split washer or lock washer) is a type of washer used primarily to prevent the loosening of fasteners due to vibration or rotational forces. It is designed with a split or spiral shape, which creates tension when compressed. This tension helps the washer to "bite" into the surface of the fastener and the material it is mounted on, increasing friction and preventing the fastener from loosening.

Key Features:

1.


   Shape: Spring washers are usually split or have a helical, spiral shape, which provides the spring action needed to resist loosening.





2.


   Material: These washers are typically made from stainless steel, carbon steel, or spring steel to provide the necessary flexibility and strength for the spring action.





3.


   Size: Spring washers come in various sizes, just like regular washers, and their internal diameter (ID) matches the size of the bolt or screw they are meant to secure.




Function:

•


  Prevents Loosening: The main purpose of a spring washer is to prevent bolts and nuts from loosening under vibrations or rotational forces.





•


  Absorbs Shock: They act as a shock absorber, absorbing vibrations that might otherwise cause a fastener to lose its tightness.





•


  Adds Tension: When compressed between the nut or bolt and the surface, the spring washer exerts a constant force, helping to maintain a secure connection.




Types of Spring Washers:

1.


   Split (or Helical) Spring Washer: The most common type, with a split spiral design.





2.


   Wave Washer: A type of spring washer that has a series of waves or undulations to provide compression and resistance.





3.


   Conical (Belleville) Washer: A disc-shaped washer with a slight conical shape, used in high-pressure or high-temperature applications.





4.


   Lock Washer: These are similar to spring washers but often have additional features like teeth to dig into the surface for extra security.




Common Applications:

•


  Automotive: To secure bolts and prevent loosening due to engine vibrations.





•


  Machinery: Used in equipment or assemblies with moving parts to prevent fastener loosening.





•


  Electronics: In devices that experience vibrations, spring washers help secure components.




Size and Weight Considerations:



•


  Size: Like regular washers, the size of a spring washer is determined by the diameter of the fastener it fits (e.g., M6, M10, M12), as well as the thickness and outer diameter, which affect the amount of tension the washer can provide.





•


  Weight: The weight of a spring washer will depend on the material, size, and thickness. Typically, they are lightweight but strong enough to perform their function effectively

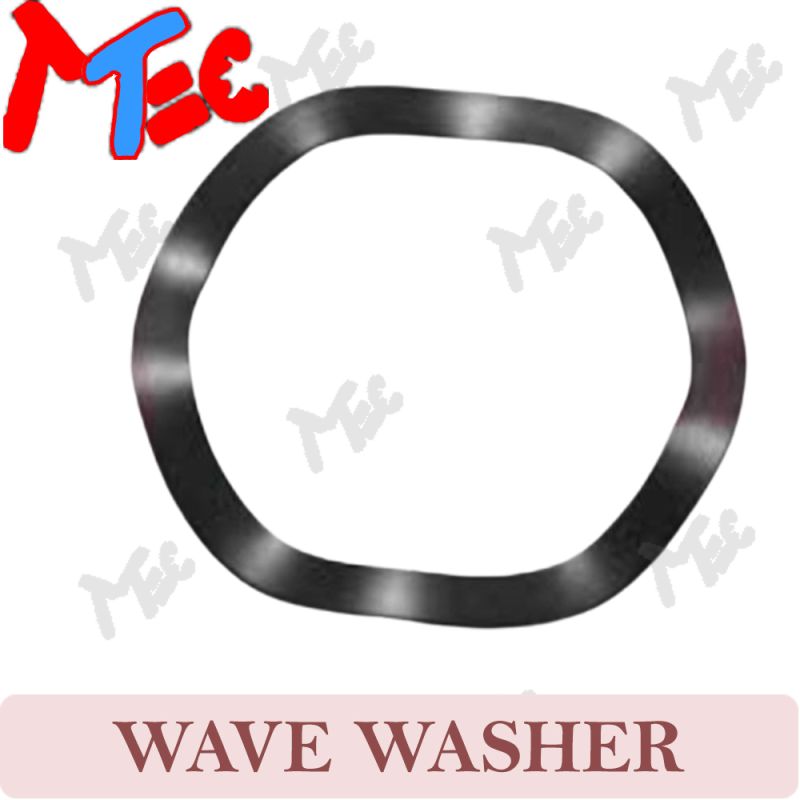

A wave washer is a type of spring washer that has a wavy, undulating shape. The washer is designed to provide axial load and create a spring-like effect when compressed. These washers are commonly used in applications where vibration, shock absorption, or the need for a constant compressive force is required.

Key Features of a Wave Washer:

1. Wave Shape: The washer has multiple waves or undulations, which give it flexibility. These waves compress under load, creating tension that resists loosening.

2. Material: Wave washers are typically made from spring steel, stainless steel, or other materials that offer good elasticity and strength.

3. Size: Wave washers come in a variety of sizes, based on the diameter of the fastener they are designed to fit. The key measurements are the inner diameter (ID), outer diameter (OD), and thickness.

4. Function: When the wave washer is compressed, the waves flatten out and push back against the applied load, offering a spring effect. This helps absorb vibrations and prevents loosening of fasteners.

Applications:



• Shock Absorption: Wave washers help absorb shock and vibrations in machinery or automotive parts.

• Electrical and Electronics: In devices like motors and gears that experience frequent movement or vibration.

• Prevent Loosening: Like other spring washers, they prevent nuts and bolts from loosening due to movement or vibration.

• Compact Designs: Wave washers are often used in applications where space is limited but a reliable spring action is needed.
